193-261kWh Liquid Cooled Outdoor BESS | LiFePO4 C&I Energy Storage Cabinet

193-261kWh Liquid Cooled Outdoor BESS | LiFePO4 C&I Energy Storage Cabinet

Upgrade your energy management with Sunrange 193–261kWh Liquid Cooled Outdoor BESS, a next-generation containerized energy storage system tailored for global commercial and industrial users. Different from traditional air-cooled storage products, the advanced liquid cooling design realizes precise temperature control, higher energy efficiency and longer battery lifespan. The complete product lineup (SR-193HYBRID to SR-261HYBRID) provides diversified capacity options, while the high-voltage battery structure and 98.5% maximum PCS efficiency maximize economic benefits.

  • N.º de modelo: :

    SR-193-261 HYBRID

  • Potencia máxima: :

    125KW

  • Voltaje de salida: :

    380/400V Three Phase 50/60Hz

  • Capacidad de la batería: :

    261KWH

  • Aplicación de instalación: :

    Ground

  • Garantía: :

    10 Years
Pregunte ahora
Descargar
CATEGORÍAS DE PRODUCTOS
Nuevos productos

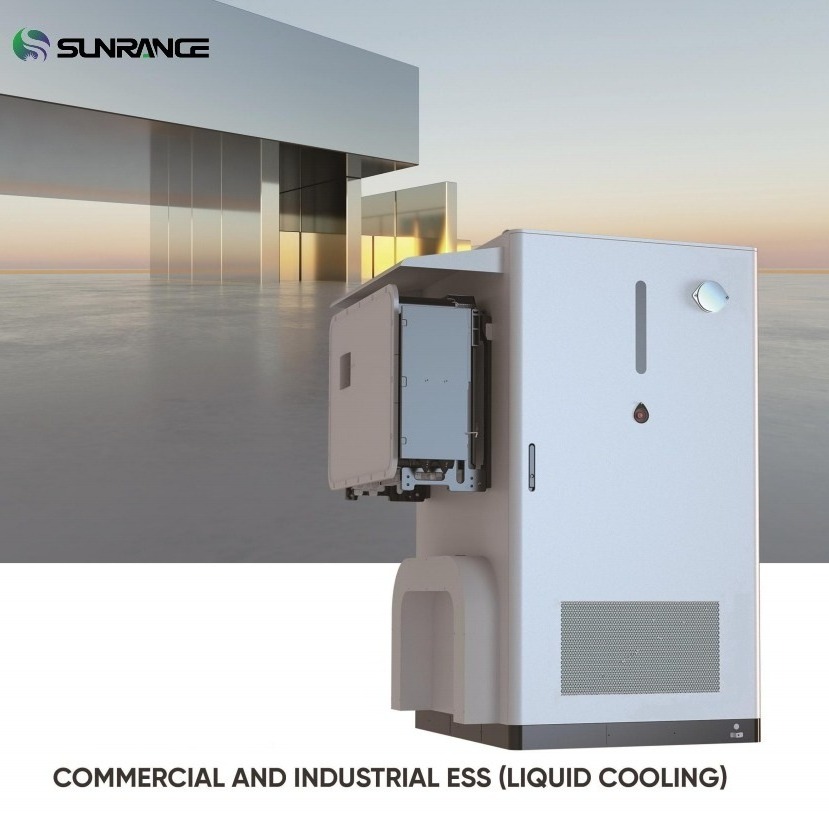

Sunrange 193KWH-261KWH Liquid cooling Energy Storage System

Built with premium 314Ah LiFePO4 cells, the all-in-one cabinet fully integrates liquid cooling thermal management, bi-directional PCS, intelligent BMS/EMS, fire suppression, power distribution and outdoor weatherproof enclosure in one compact unit.



product introduction

  Model SR-193HYBRID SR-209HYBRID SR-241HYBRID SR-261HYBRID
  DC Battery Parameters
  Battery Rated Energy (KWh) 193  209  241  261
  Battery Rated Voltage(V) 614  666  768  832
  Battery Voltage Range(V) 537~691 583~749 672~864 728~936
  Battery Type LFP
  Battery Energy(Ah) 314
  Battery Life Cycle 6,000 Cycles(0.5C,5%~95%DOD,80%SOH)
  Battery Standard Charge/
  Discharge Rate(C)		 0.5
  Battery Pack Series And Parallel 1P48S×4 1P52S×4 1P48S×5 1P52S×5
  Module Cooling Method Liquid Cooling
  PCS Parameters

  Optional PCS		 30-125KW
Hybrid Inverter
(Wall-Mounted)		 30-125KW
Hybrid Inverter
(Wall-Mounted)		 30-125KW
Hybrid Inverter
(Wall-Mounted)		 30-125KW
Hybrid Inverter
(Wall-Mounted)
  PCS Power(KW) 30~125 30~125 30~125 30~125
  Maximum Current(A) 160
  Maximum Efficiency 98.5%
  System Parameters
  Energy Cycle Efficiency ≥90%
  Protection Level IP55
  Corrosion Resistance Level C3 is the default,C4/C5 are optional
  Fire Fighting Aerosol/Perfluorohexanone(Optional)
  Altitude 3000m(Derating Applies Over 2000m)
  Relative Humidity 0~95%(Non-condensing)
  Ambient Temperature -20℃~+50℃
  Communications 4G/CAN/RS485
  Dimensions(W×D×H)MM 1150*1410*2240(±5MM)
  Weight(KG) 2100  2170  2350  2500
  Warranty 10 years



Product Detail Photos

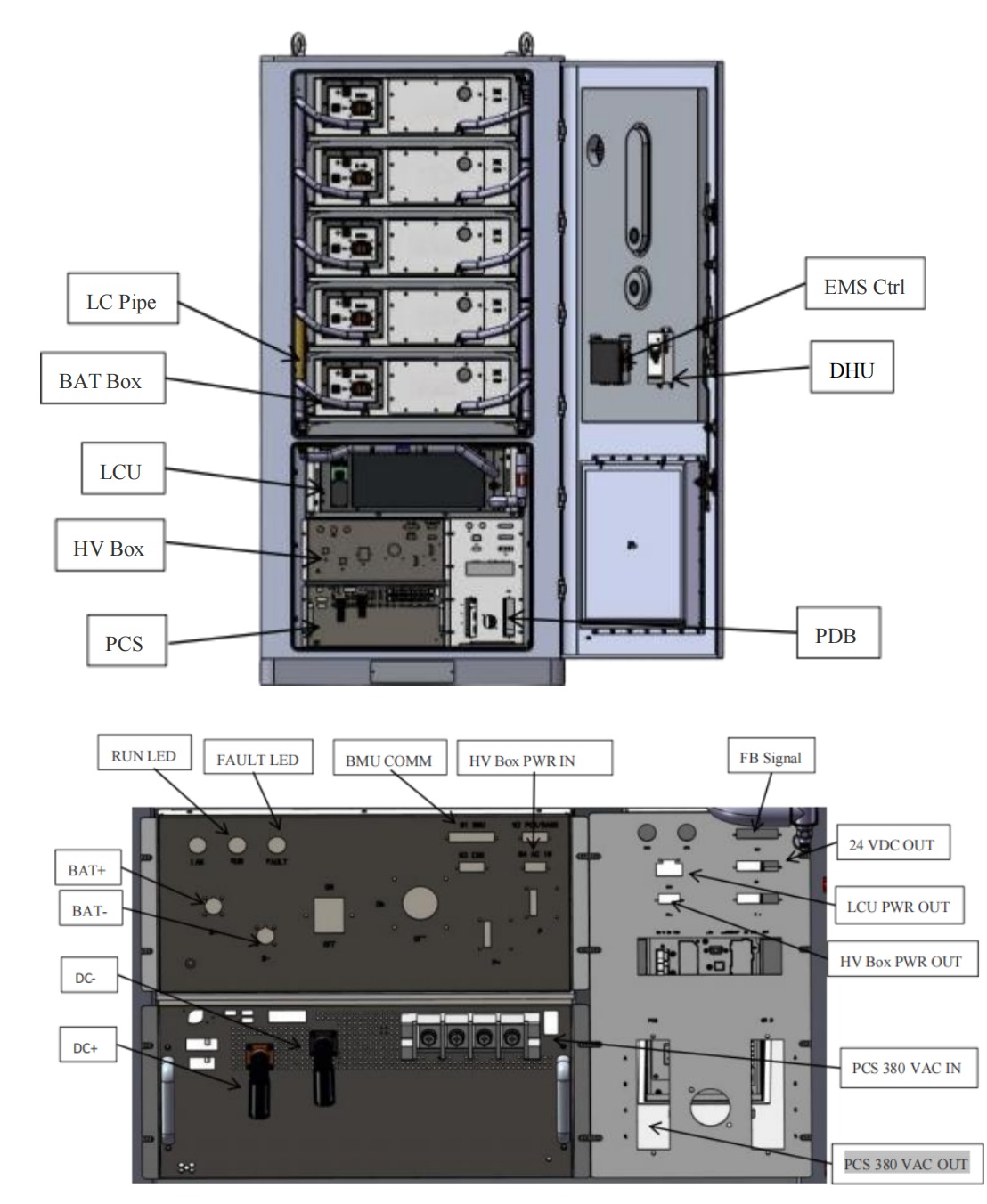

Sunrange 261KWH liquied cooling BESS

Key Advantages

  • Superior Liquid Cooling Performance

    Liquid circulation heat dissipation eliminates hot spots inside the battery cluster, maintains consistent temperature across all cells, reduces auxiliary power consumption by 20% vs air cooling, and lifts battery cycle life by over 20%. Stable performance under high-temperature summer outdoor environments.



  • Fully Integrated All-in-One Plug & Play

    All core subsystems pre-installed in factory; deliver to site, connect grid and PV to operate instantly. Greatly cuts construction period and civil engineering cost.



  • Multi-Layer Safety Protection

    LiFePO4 intrinsic safety + PACK-level fire isolation + cabinet automatic fire suppression + temperature leakage real-time monitoring + overcharge/over-discharge/short-circuit multi-protection logic to prevent thermal runaway risks.



  • Intelligent Cloud Monitoring

    Ethernet communication supports remote real-time data tracking, fault early warning, peak-valley automatic switching, PV self-consumption optimization and unattended operation.



  • Flexible Application Scenarios
  • Factory peak shaving & valley filling, commercial building backup power, rooftop solar storage, charging station energy buffer, remote microgrid, demand response revenue optimization.





FAQ

Q1: What capacity range does the Sunrange liquid cooled outdoor BESS cover, and what core advantages does liquid cooling bring?

A: This product line offers adjustable energy capacity from 193kWh to 261kWh for outdoor commercial & industrial deployment. Its closed-loop liquid cooling system keeps cell temperature difference within ±2°C, supporting higher continuous charge/discharge power, extending battery cycle life by around 20%, and delivering stable performance in extreme hot or cold outdoor environments compared to air-cooled models.

Q2: Can this Sunrange BESS be directly installed outdoors without an extra equipment room? What is its enclosure protection rating?

A: Yes, it is fully designed for direct outdoor placement with no dedicated shelter required. The cabinet adopts IP55 dust and waterproof protection grade, paired with integrated liquid heating & cooling modules to support stable operation under ambient temperatures of -30°C to 55°C, adapting to all climate zones.



Q3: What main application scenarios is the 193–261kWh Sunrange liquid cooled outdoor BESS suitable for?

A: It serves multiple commercial & industrial use cases: peak shaving & demand charge reduction, solar PV energy storage & load shifting, critical facility backup power, microgrid stabilization, virtual power plant (VPP) access, and factory power quality optimization.



Q4: Is the Sunrange 193–261kWh liquid cooled BESS modular and expandable for larger energy storage projects?

A: Absolutely. The all-in-one cabinet supports AC parallel connection of multiple units. You can combine several 193kWh/261kWh modules to scale up total capacity to multi-MWh, controlled by a unified central EMS platform for coordinated charge and discharge scheduling.



Q5: What safety protection systems are integrated into this outdoor liquid cooled BESS?

A: It adopts multi-layer full safety design: real-time BMS cell temperature & voltage monitoring, liquid coolant leak detection, thermal runaway early warning, pack-level aerosol fire suppression, explosion relief valves, and emergency E-Stop button. It complies with IEC 62619, UN38.3 and other global energy storage safety standards.



Q6: Does the Sunrange liquid cooled BESS come with built-in PCS and EMS? What communication protocols does it support?

A: Each cabinet integrates a high-efficiency bidirectional PCS and intelligent EMS out of the box, no separate inverter purchase needed. It supports mainstream communication protocols including Modbus RTU/TCP, CANbus, MQTT and IEC 104, enabling seamless connection with solar inverters, generators, cloud monitoring platforms and grid dispatching systems.
